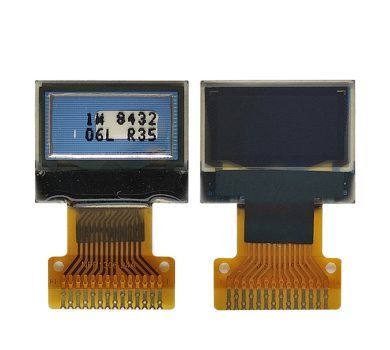

0.49” OLED Display

Compact 0.49-inch OLED display module with high contrast and ultra-low power consumption, widely used in industrial control panels, medical instruments, and portable devices.

0.49oled

Key Features

  • Resolution: 64×32
  • Display color: White
  • Interface: I2C / SPI
  • Operating voltage: 3.3V
  • Wide viewing angle, fast response
  • Long-term stable supply
Request Datasheet

Specifications



Screen Size0.49 inch
Resolution64 × 32
Display TypeOLED
InterfaceI2C / SPI
Operating Voltage3.3V
Operating Temperature-40℃ ~ +70℃
ApplicationIndustrial, Medical, Smart Devices
Panel Size14.5×11.5.1.2mm
Pins14
Driver ICSSD1315 (SSD1306 Compatible)

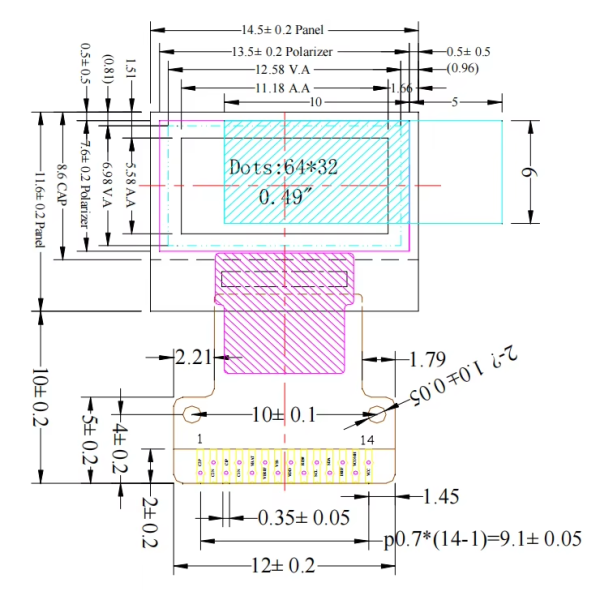

0.49oled size

Need Custom OLED Display?

We support OEM / ODM for size, interface, and connector customization.
