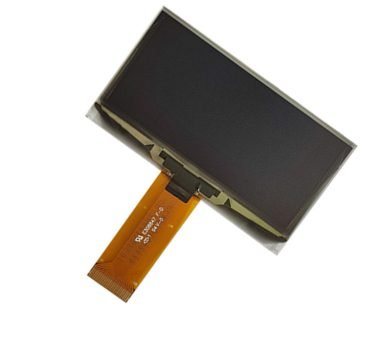

2.42” OLED Display
This 2.42-inch bare OLED display features a 128×64 resolution, SSD1309 driver IC, and a compact PCB-free design for integration into custom electronic products.
With a 24-pin FPC connection and support for SPI / I2C interfaces, it is suitable for engineers developing their own control boards. The display offers high contrast, wide viewing angles, and an operating temperature range of -40°C to +70°C, making it a practical choice for industrial instruments, embedded systems, and other compact electronic devices.
Key Features
2.42-inch passive-matrix OLED display
128 × 64 pixel resolution
Bare OLED panel without PCB
SSD1309 driver IC
SPI / I2C interface support
24-pin FPC, 0.5 mm pitch

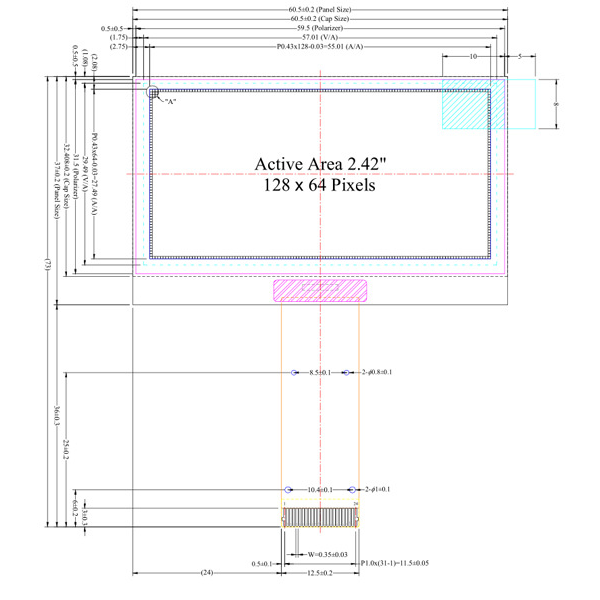

Panel dimensions: 60.50 × 37.00 × 2.00 mm
Active area: 55.01 × 27.49 mm
Operating temperature: -40°C to +70°C
White / Blue / Yellow / Green display options
Suitable for custom PCB and embedded system integration
Specifications
| Screen Size | 2.42 inch |
| Resolution | 128 × 64 |
| Display Type | Passive Matrix OLED |
| Interface | I2C / SPI |
| Driver IC | SSD1309 |
| Panel Dimensions | 60.50 × 37.00 × 2.00 mm |
| Active Area | 55.01 × 27.49 mm |
| Pixel Pitch | 0.43 × 0.43 mm |
| Pixel Size | 0.40 × 0.40 mm |
| FPC Length | 36 mm |
| FPC Connector | 24-pin, 0.5 mm pitch, top contact |
| Operating Temperature | -40℃ ~ +70℃ |
| Display Colors | White / Blue / Yellow / Green (optional) |
| Viewing Angle | Wide viewing angle |
Need Custom OLED Display?
We support OEM / ODM for size, interface, and connector customization.
