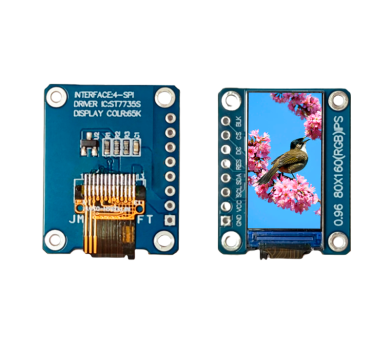

0.96” TFT Display Module
The 0.96 inch TFT display module is a compact color display solution designed for embedded systems, wearable devices, and portable electronics, offering clear visuals, low power consumption, and stable performance.
Key Features
- Resolution: 80(H)RGBx160(V)
- Screen Size: 13.5(H) x 27.95(V) x1.5(D) mm
- Brightness: 150cd/m2
- Active area: 10.8(H) x 21.7(V) mm
- Full color range
- Long-term stable supply
Specifications
| Display Size | 0.96 inch |
| Resolution | 80 × 160 |
| Display Type | TFT |
| Interface | SPI |
| Brightness | 150cd/m2 |
| Operating Temperature | -20℃ ~ +70℃ |
| Application | Industrial, Medical, Smart Devices |
| Mounting Type | PCB |
| Driver IC | ST7735S |

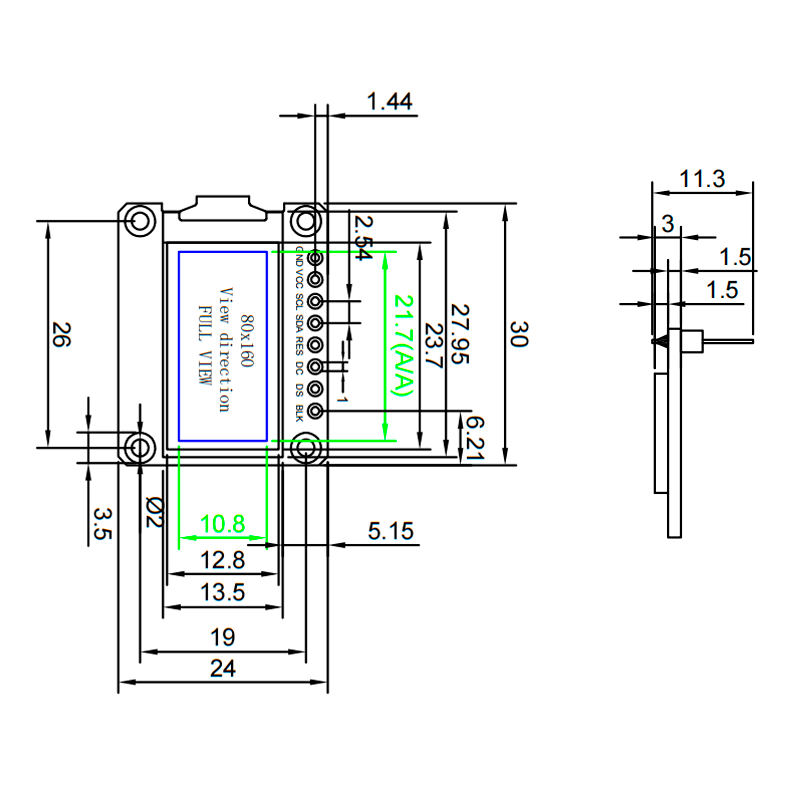

| Module Size | 13.5(H) x 27.95(V) x1.5(D) mm |
Need Custom TFT Display?
We support OEM / ODM for size, interface, and connector customization.
