1.3” OLED Display

The 1.3-inch oled display panel provides a balance between display size and design flexibility. Supplied without PCB, it is suitable for custom hardware projects where interface definition and mechanical integration are fully controlled by the system designer.

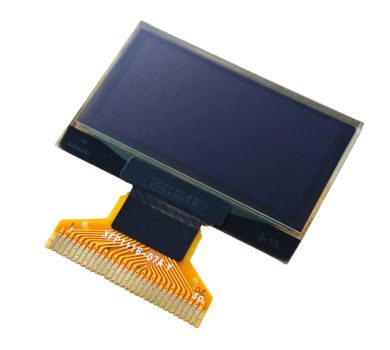

1.3 inch oled

Key Features

  • Resolution: 128×64 pixels
  • Display color: White / Blue
  • Interface: I2C / SPI
  • Operating voltage: 3.3V
  • Wide viewing angle, fast response
  • Long-term stable supply
Request Datasheet

Specifications



Screen Size1.3 inch
Resolution128 × 64
Display TypeOLED
InterfaceI2C / SPI
Operating Voltage3-5V
Operating Temperature-40℃ ~ +70℃
ApplicationIndustrial, Medical, Smart Devices
Pins30
Mounting TypeWelding
Driver ICSSD1306 / SH1106

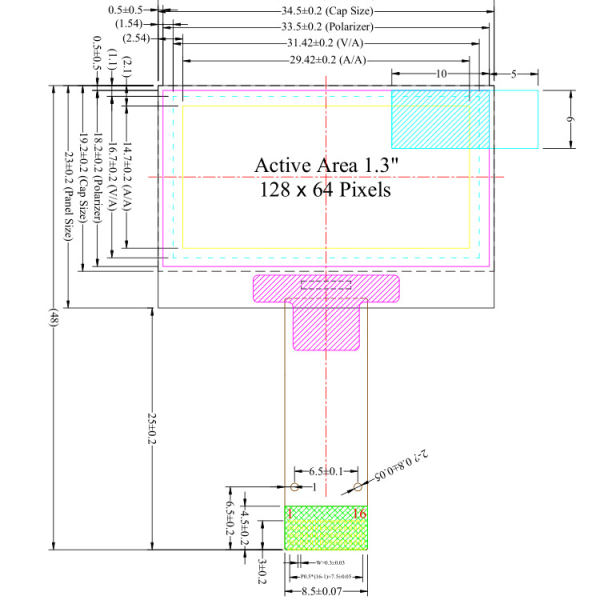

1.3oled size

Need Custom OLED Display?

We support OEM / ODM for size, interface, and connector customization.
