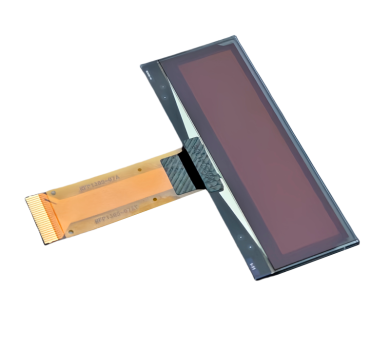

2.23” OLED Display

The 2.23-inch oled display panel provides a larger visual interface for embedded systems and control applications. Delivered without PCB, it allows full flexibility in circuit development and enclosure design.

2.23inch oled

Key Features

  • Resolution: 128×32 pixels
  • Display color: White / Blue
  • Interface: I2C / SPI
  • Operating voltage: 3.3V / 5V
  • Wide viewing angle, fast response
  • Long-term stable supply
Request Datasheet

Specifications



Screen Size2.23 inch
Resolution128 × 32
Display TypeOLED
InterfaceI2C / SPI
Operating Voltage3-5V
Operating Temperature-40℃ ~ +70℃
ApplicationIndustrial, Medical, Smart Devices
Pins24
Mounting TypeWelding
Driver ICSSD1309
Screenshot

Need Custom OLED Display?

We support OEM / ODM for size, interface, and connector customization.

Get a Quote
