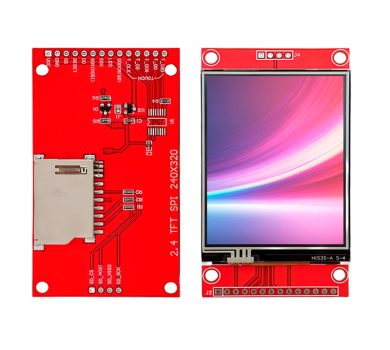

2.4” TFT Display Module
The 2.4 inch TFT display module is widely used in industrial, medical, and commercial applications, featuring a larger display area, sharp image quality, and reliable long-term operation.
Key Features
- Resolution: 240×320

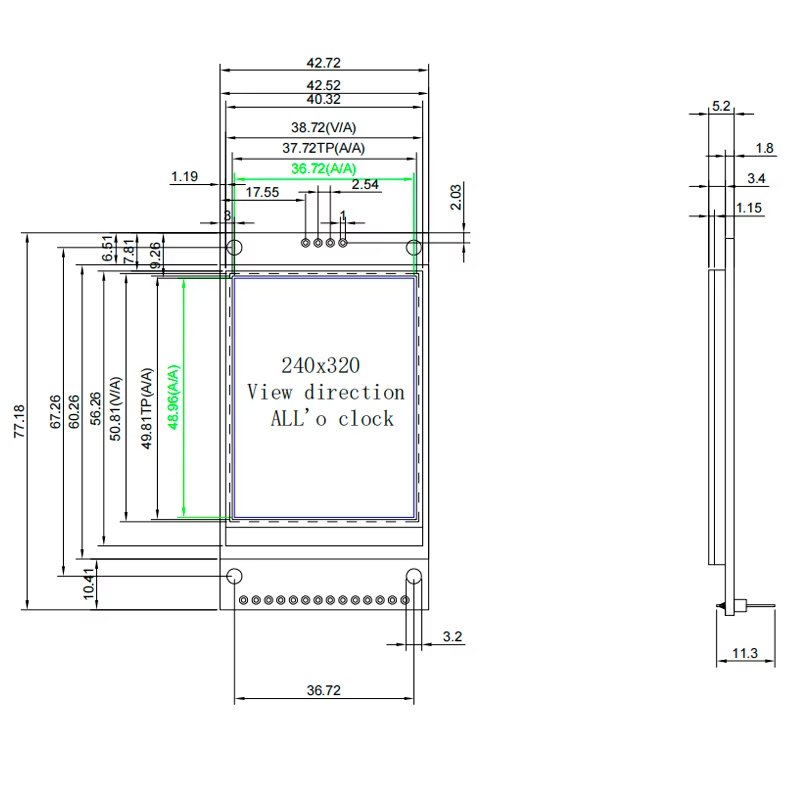

- Module Size: 77.18x 42.72×5.2 mm
- Brightness: 400cd/m2
- Active area: 48.96×36.72mm
- Full color range
- Long-term stable supply
Specifications
| Display Size | 2.4 inch |
| Resolution | 240×320 |
| Display Type | TFT |
| Interface | SPI |
| Backlight | LED |
| Operating Temperature | -20℃ ~ +70℃ |
| Application | Industrial, Medical, Smart Devices |
| Mounting Type | Panel |
| Driver IC | ILI9341V |
| Brand | Sharp |
Need Custom TFT Display?
We support OEM / ODM for size, interface, and connector customization.
