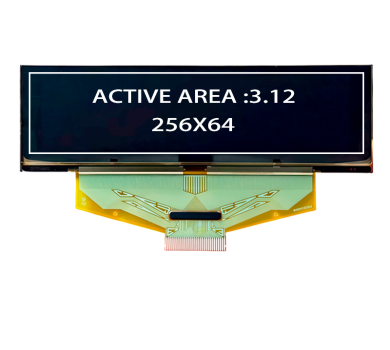

3.12” OLED Display
Compact 3.12-inch OLED display module with high contrast and ultra-low power consumption, widely used in industrial control panels, medical instruments, and portable devices.
Key Features
- Resolution: 256×64 pixels
- Display color: White / Blue / Yellow
- Interface: I2C / SPI
- Operating voltage: 3.3V
- Wide viewing angle, fast response
- Long-term stable supply
Specifications
| Screen Size | 3.12 inch |
| Resolution | 256 × 64 |
| Display Type | OLED |
| Interface | I2C / SPI |
| Operating Voltage | 3-5V |
| Operating Temperature | -40℃ ~ +70℃ |
| Application | Industrial, Medical, Smart Devices |
| Driver IC | SSD1322 |
Need Custom OLED Display?
We support OEM / ODM for size, interface, and connector customization.
